Product Introduction

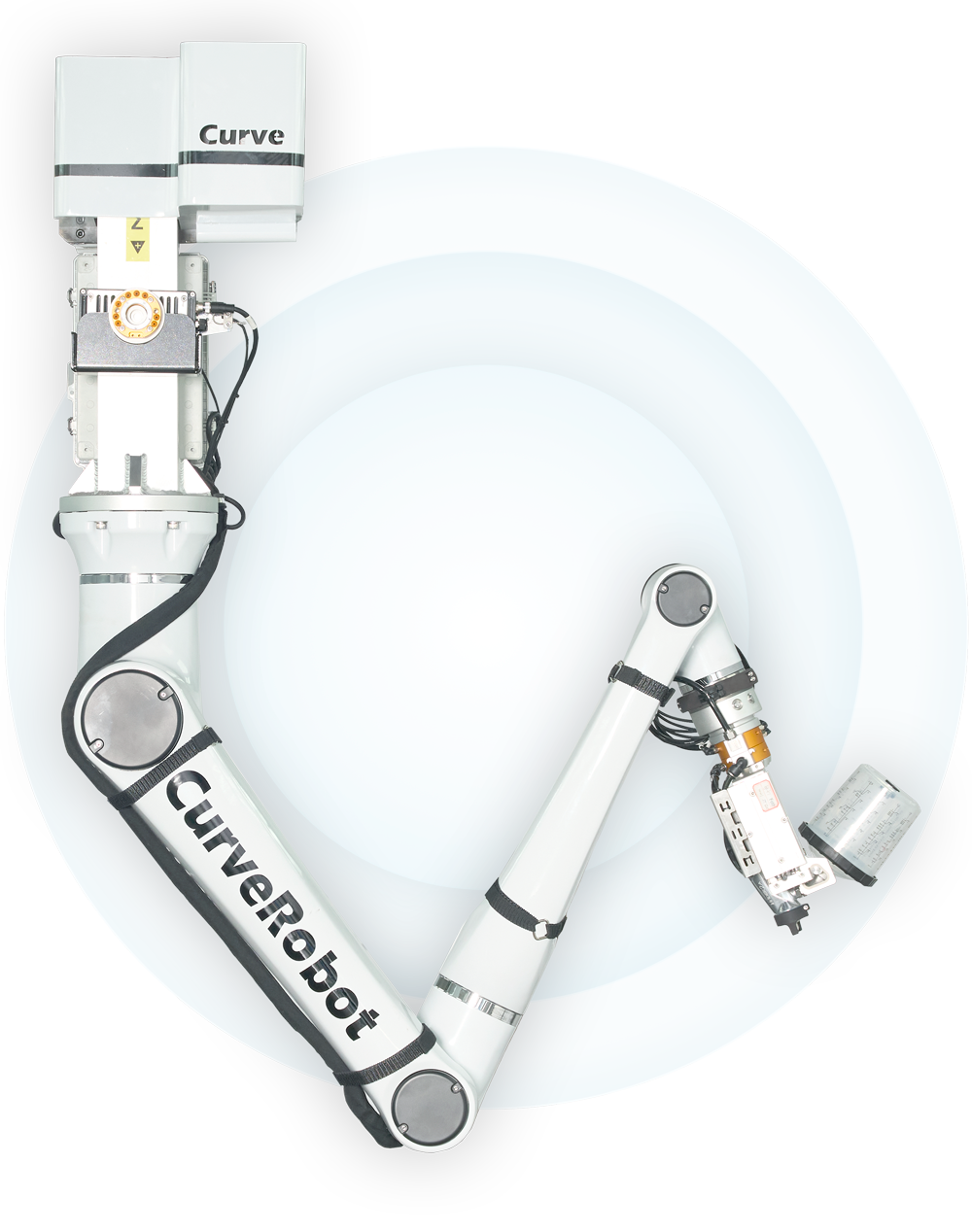

T1000 Series Robot

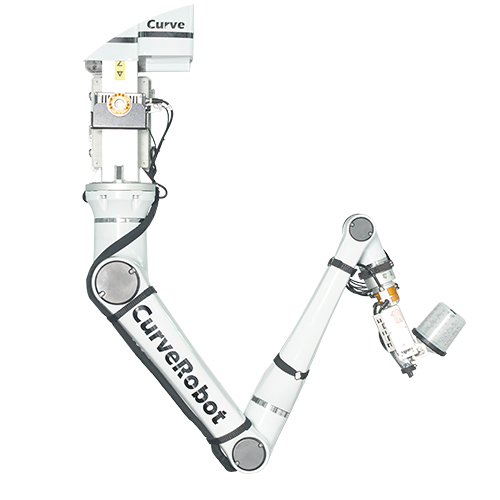

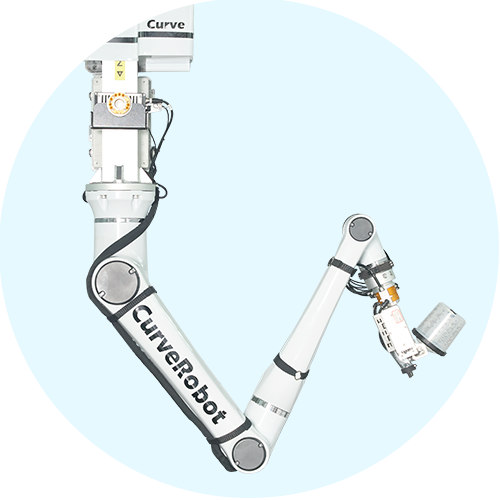

CR Series Robot

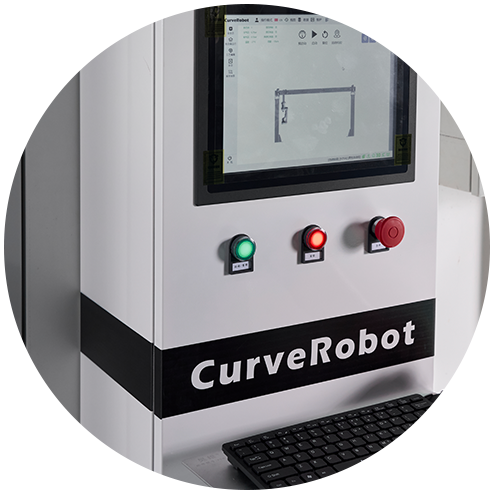

Integrated Controller

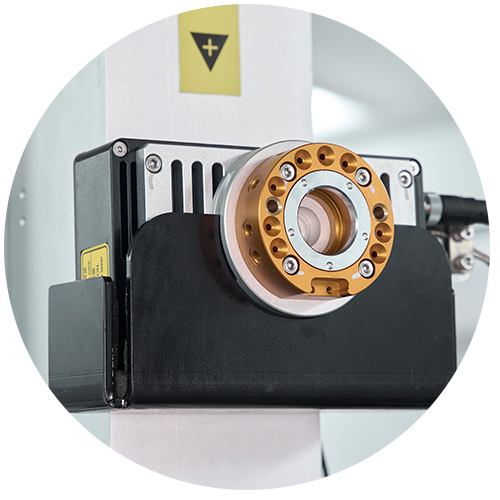

CRV Series Camera

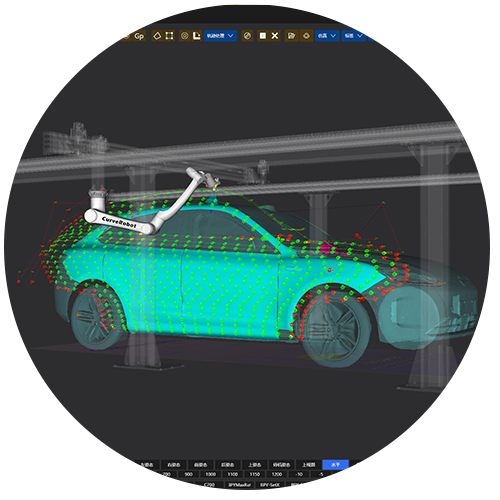

Intelligent Path Planning Platform

Product Features

High Adaptability

Can be installed in existing standardspray booth without modification

Easy to Set Up

The product adopts lightweight and modular design, easy to disassemble and assemble, and can be set up within 5 days

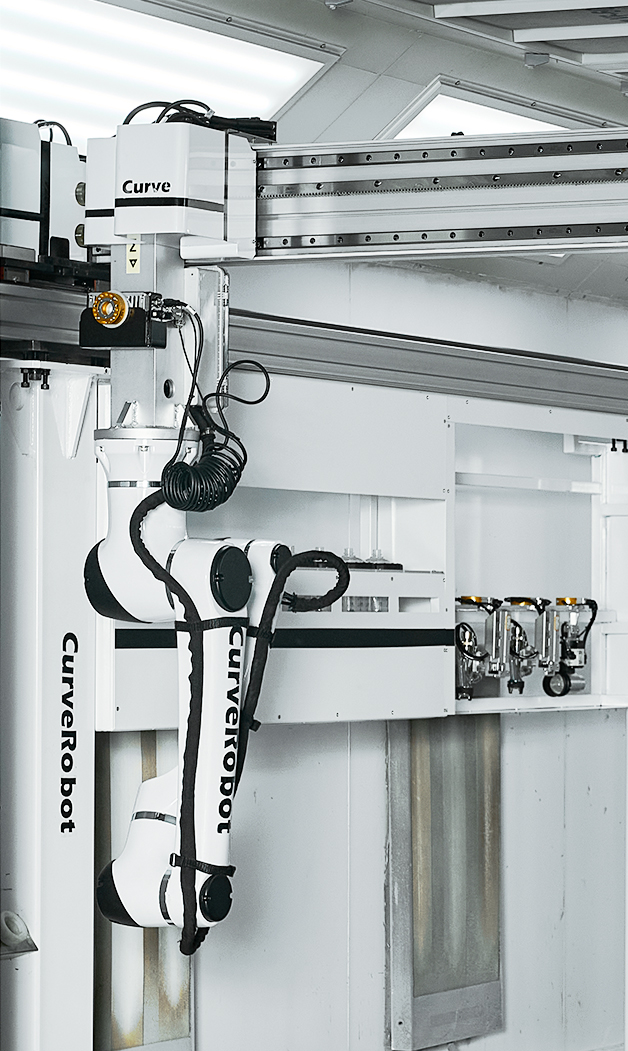

Auto Gun Docking and Replacing

During the spraying process, the robot autonomously travels to the gun rack area to dock the paint gun, varnish gun, and dryer according to the spraying process, thereby achieving unmanned intervention throughout the spraying process

Auto Refilling and Washing

According to the preset process, 8 base coat cups and clear coat cups can be placed in advance, and there is no need for manual refilling and gun washing during the spraying operation

Low Maintenance Cost

Designed for long service life, easy maintenance, and low energy consumption

Self Developed

Intelligent Algorithm Batch generation and verification of spray path and spray effect simulation can be achieved through self-developed algorithms

Easy to Operate

The operation is extremely simple, taking only over 40 seconds to complete the entire process. With one click start and one click completion, one person can simultaneously monitor multiple devices without the need for manual intervention

Flexible and Abundant Process

1. Base coat & clear coat spraying processes can be edited and saved locally.

2. Flash off time can be set automatically/manually

3. Confirmation prompt to avoid misoperation

4. The process is clear and understandable at a glance

Product specifications

AI empowers the spraying industry, allowing robots to understand the world.

To provide 24-hour online remote debugging services for respected users and promptly address any issues with the equipment. Provide attentive after-sales service to users, eliminating their worries.

Technical Proposal

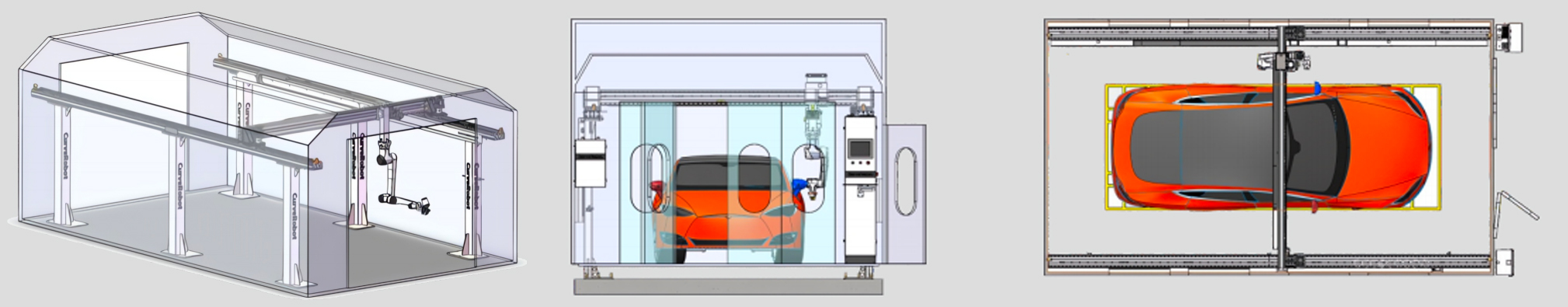

Single Booth Description

Suitable for general spray booth ( width * length :4m*7m) Suitable for whole vehicle spraying and parts spraying

Suitable for most mainstream paint brands on the market

Suitable for most common car models on the market and the database is still being continuously expanded

Total 3 weeks ,1st week for setup ,2nd week for debugging ,3rd week for training

Suitable for painters of all levels , with 1-2 weeks of training to get started

6-8 sprays in 1 shift

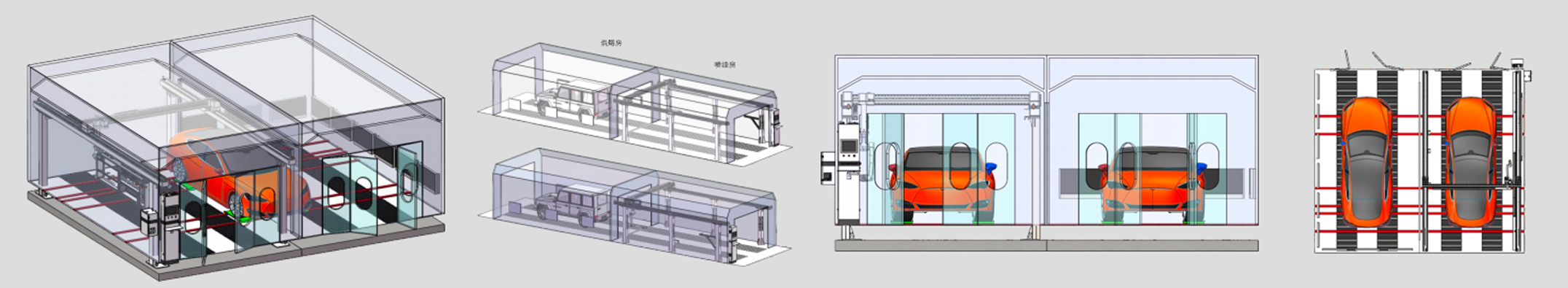

Tandem Booths Description

Suitable for ordinary Tandem booths ( ensuring the size width * length of the painting room :4m*7m)
Suitable for whole vehicle spraying and parts spraying
Suitable for most mainstream paint brands on the market
Suitable for most common car models on the market and the database is still being continuously expanded
Total 3 weeks ,1st week for setup ,2nd week for debugging ,3rd week for training
Suitable for painters of all levels , with 1-2 weeks of training to get started 12-16 sprays in 1 shift
